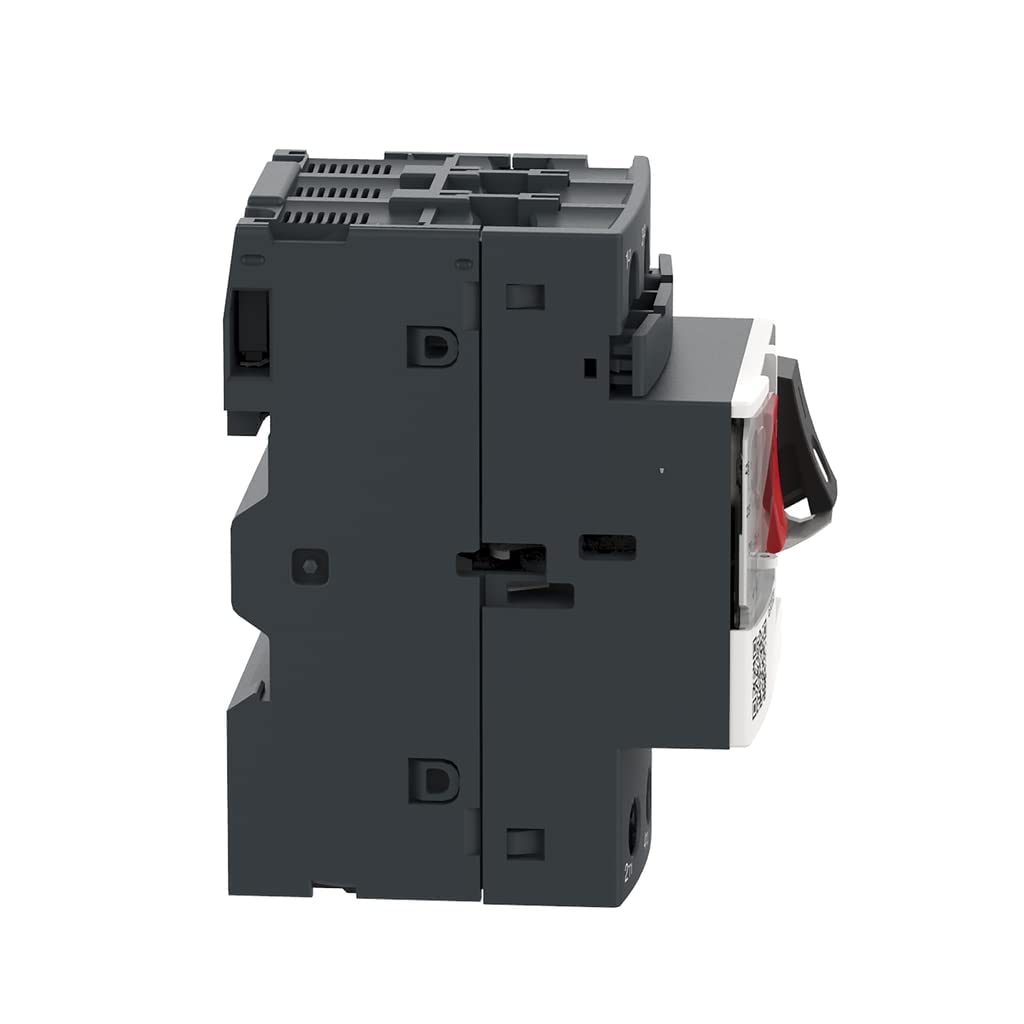

Schneider Electric GP2E22 Easy TeSys 3 Phase Manual Thermal Magnetic Motor Starter, 3 Pole, Screw Clamp Terminals, Push Button, 20-25 Amps
4.4 (32 items)
Limited Time Sale$59.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215609098 | Release Date | 2026/04/12 | List Price | $39.60 | Model Number | 215609098 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Easy TeSys manual motor controller, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).
- This thermal magnetic starter has up to 20HP, an operational and insulation voltage of 690V AC 50/60 Hz, for 3-Pole electrical motors used in HVAC, elevators, pumps or compressors, and agriculture
- This manual starter has a push button On/Off operation and reset switch; has a robust performance of up to 100,000 cycles AC-3 440 Volts
- It features a compact and modular design, reduced installation time, and provides motors with essential control & protection
- Use with Schneider Electric auxiliary contact block GPEFC11, mounting adapter GV2AF3, busbar GV2G445, enclosure GV2MC01 or GV2MC02 and contactor DPE32G7
- Flexibility to add motor disconnects to help met NEC is IEC and cUL certified and green premium compliant (RoHS/REACh)
| Model | GP2E22 |
|---|---|
| Voltage | 400 Volts |
| Wattage | 11.00 |
| Amperage | 25 Amps |
| Brand Name | Schneider Electric |
| Phase Type | Three Phase |
| Unit Count | 1 Count |
| Part Number | GP2E22 |
| Manufacturer | Schneider Electric |
| Material Type | Plastic |
| Item Dimensions | 3.5 x 1.75 x 3.07 inches |
| Included Components | Light |
| Warranty Description | 18 months manufacturer |
